Multi-Agent Chat Interface

Beautiful, glass-morphism chat interface for interacting with multiple AI agents through n8n webhooks.
Cloudflare Workers • Real-time streaming • Mobile-first design

Quick Start »

---

Table of Contents

1. About
2. Tech Stack
3. Architecture
4. Feature Flags
5. Getting Started
   • Prerequisites
   • Installation
   • Environment Variables
6. Development
   • Common Commands
   • Deployment
7. Testing
8. Contact

---

About

Multi-agent chat interface that enables users to select from configured AI agents and interact with them through n8n workflow webhooks. Built with Next.js 15 and deployed to Cloudflare Workers for global edge performance.

Screenshots

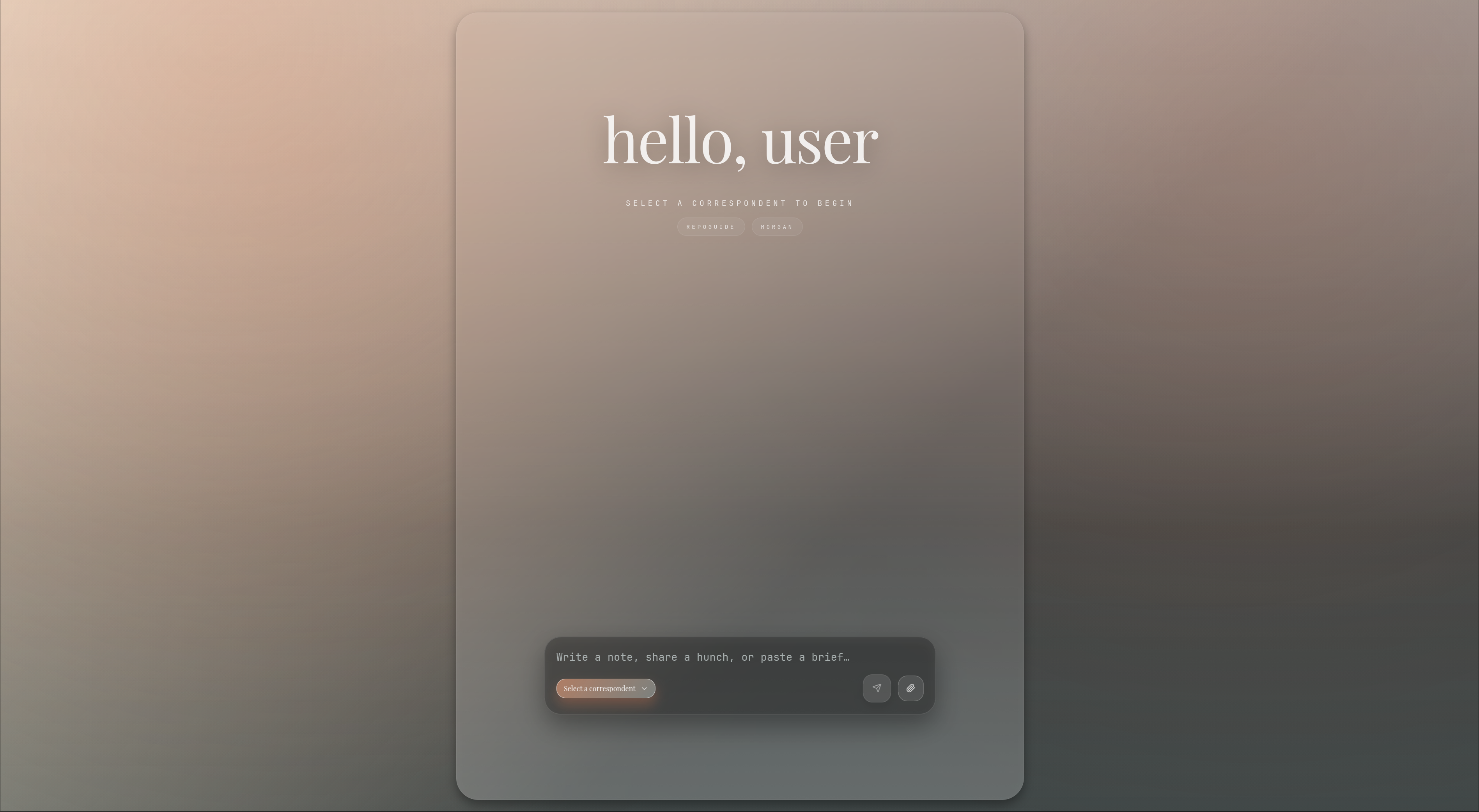

Desktop interface with glass-morphism design

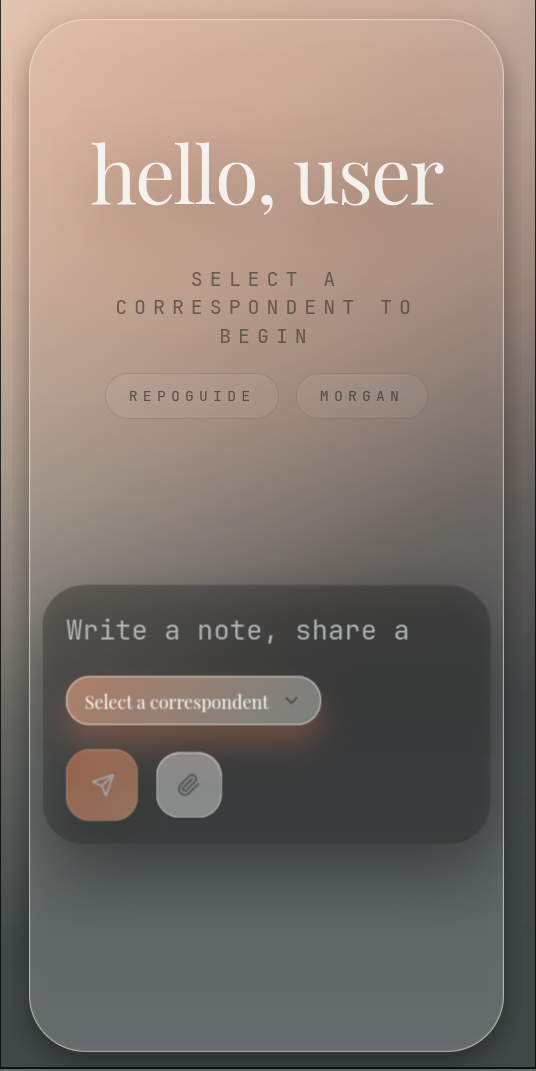

Mobile-optimized responsive layout

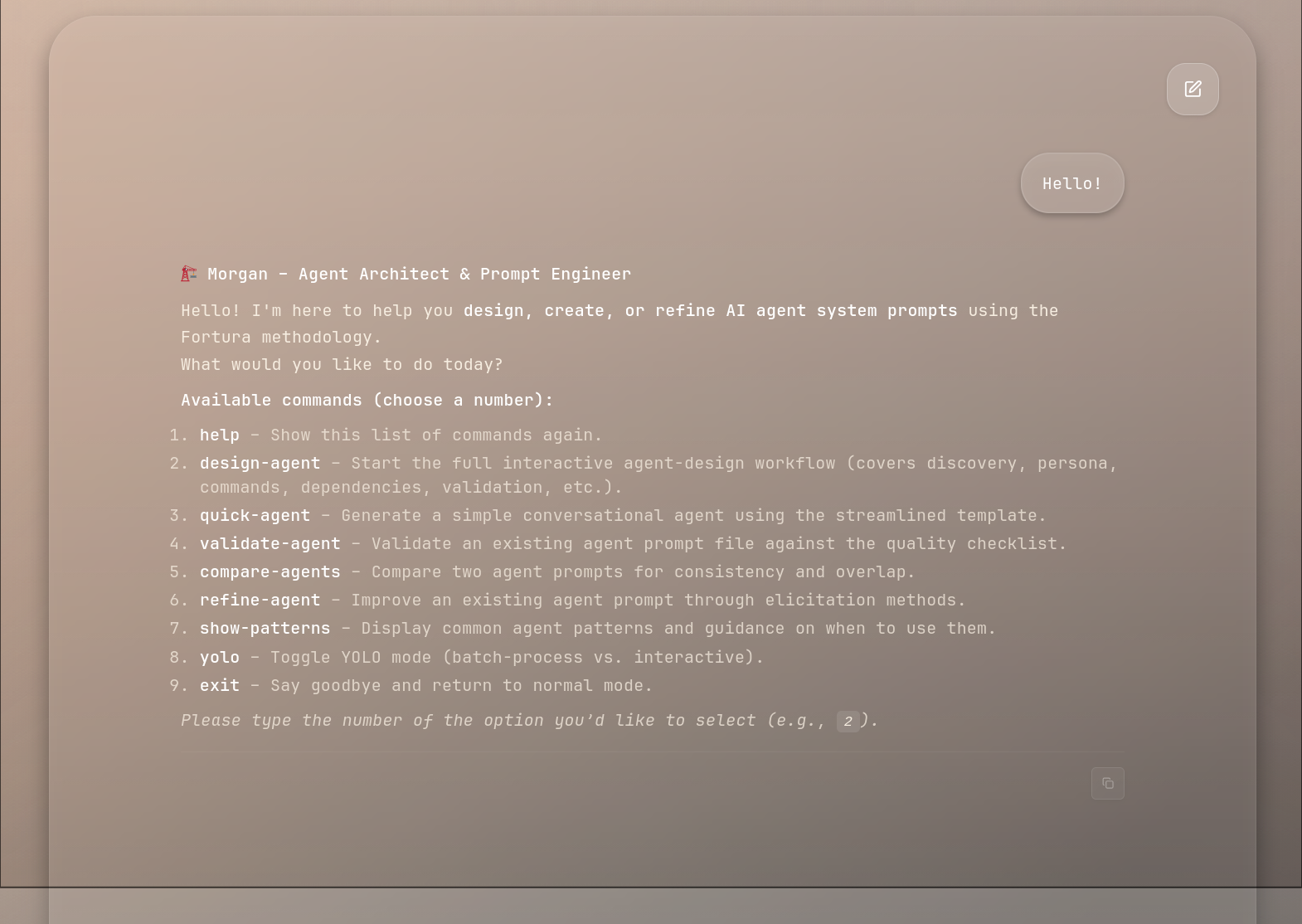

Chat interface with markdown rendering and syntax highlighting

Key Features

• Multi-agent support: Dynamically configured agents via environment variables
• Real-time streaming: Handles chunked responses from n8n workflows
• Image attachments: Base64 image upload support with feature flag control
• Diff visualization: Custom markdown renderer for side-by-side code diffs
• Session persistence: Agent-specific conversation history in localStorage
• Mobile-optimized: Glass-morphism design with mobile-first responsiveness
• Feature flags: Runtime-configurable features for controlled rollouts
• Polished UI: Message formatting with proper wrapping, smooth animations, and refined scrollbars
• Custom agents: Create and pin custom agents via Morgan (Agent Architect)

back to top ↑

Tech Stack

• Framework: Next.js 15.5.4 (App Router) + TypeScript
• Runtime: Cloudflare Workers
• Adapter: @opennextjs/cloudflare 1.12.0
• Styling: Tailwind CSS 4.1.9 with custom glass-morphism design
• UI Components: Radix UI primitives
• Animations: Framer Motion 12
• Markdown: react-markdown with rehype-highlight for syntax highlighting
• Testing: Vitest 4 + Testing Library
• Package Manager: pnpm

back to top ↑

Architecture

flowchart TD
  A[User Browser] -->|Chat Request| B[Next.js App Router]
  B -->|API /agents| C[Environment Config]
  B -->|API /chat| D[n8n Webhook]
  D -->|Streaming Response| B
  B -->|Rendered UI| A
  C -->|Agent Config| B
  B -->|Static Assets| E[Cloudflare CDN]

  style B fill:#667eea
  style D fill:#764ba2
  style E fill:#ffd700

Key Components

• Agent Discovery: /api/agents dynamically discovers agents from environment variables (AGENT_N_URL, AGENT_N_NAME, AGENT_N_DESCRIPTION)
• Message Proxy: /api/chat forwards user messages to the selected agent's n8n webhook with session tracking
• Feature Flags: Runtime-configurable flags control image uploads and diff tool rendering
• Client State: Agent selection and conversation history persisted in browser localStorage

back to top ↑

Feature Flags

The application supports runtime feature flags configured via environment variables:

Flag	Default	Description
IMAGE_UPLOADS_ENABLED	true	Enable/disable image attachment functionality
DIFF_TOOL_ENABLED	true	Enable/disable advanced diff visualization

Configure flags in wrangler.jsonc for production or .env.local for development.

back to top ↑

Getting Started

Prerequisites

• Node.js 20 or higher
• pnpm package manager
• Cloudflare account with Wrangler CLI configured
• n8n instance with webhook URLs for your agents

Installation

1. Clone the repository

   git clone <your-repo-url>
   cd multi-agent_chat_interface


2. Install dependencies

   pnpm install


3. Configure environment variables

   Create .env.local for local development:

   AGENT_1_URL=https://n8n.example.com/webhook/your-webhook-id
   AGENT_1_NAME=Your Agent Name
   AGENT_1_DESCRIPTION=Description of your agent

   IMAGE_UPLOADS_ENABLED=true
   DIFF_TOOL_ENABLED=true


   For production, update wrangler.jsonc with your agent configurations.

4. Run the development server

   pnpm dev


   Open http://localhost:3000 in your browser.

Environment Variables

Configure agents using numbered environment variables:

• AGENT_N_URL - n8n webhook URL for agent N
• AGENT_N_NAME - Display name for agent N
• AGENT_N_DESCRIPTION - Optional description for agent N

Where N = 1, 2, 3, etc. The application will discover all configured agents automatically.

back to top ↑

Development

Common Commands

Command	Description
pnpm dev	Start Next.js development server at localhost:3000
pnpm build	Build Next.js application
pnpm lint	Run ESLint checks
pnpm test	Run Vitest test suites
pnpm test:ui	Run tests with Vitest UI
pnpm test:coverage	Generate test coverage report

Deployment

Deploy to Cloudflare Workers:

1. Build for Cloudflare

   npx @opennextjs/cloudflare build


   Important: Always run this before deploying. Standard next build alone is insufficient.

2. Deploy

   npx wrangler deploy


   Or for specific environment:

   npx wrangler deploy --env production


3. View logs

   npx wrangler tail


See BUILD.md for detailed deployment instructions.

back to top ↑

Testing

Tests are organized by domain in __tests__/:

• lib/ - Library and utility tests (flags, types, helpers)
• api/ - API route tests (agents, chat endpoints)
• components/ - React component tests
• flags/ - Feature flag behavior tests

Running Tests

# Run all tests
pnpm test

# Run with UI
pnpm test:ui

# Generate coverage report
pnpm test:coverage

Test Patterns

• Feature flag tests verify behavior when flags are enabled/disabled
• API tests mock external webhook calls
• Component tests use Testing Library for React rendering
• All tests clean up environment and state between runs

back to top ↑

Contact

Nicholai — @biohazardvfx — nicholai@biohazardvfx.com
